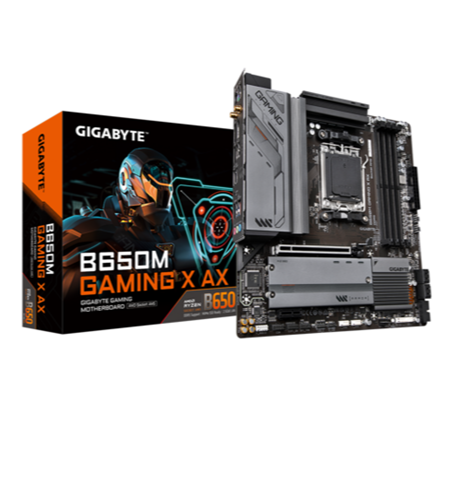

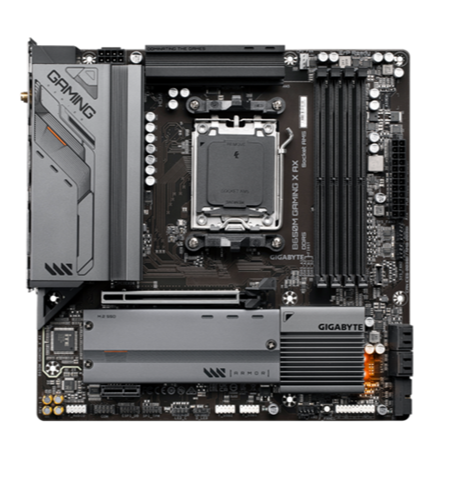

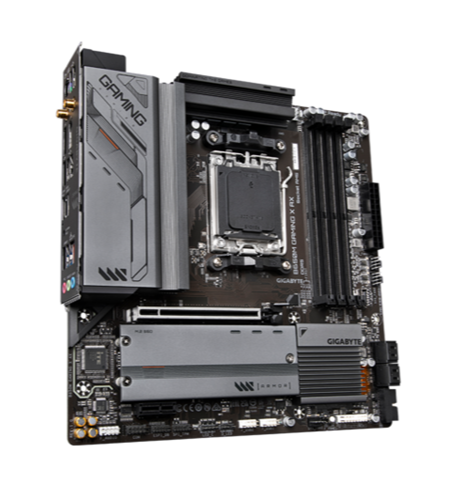

B650M GAMING X AX (rev. 1.x)
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 5200MHz upto 6400MHz (OC) |
| Supports AMD EXTended Profiles for Overclocking (EXPO) | |
| Onboard Graphics Outputs | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| 2 x DisplayPort | |
| PCI Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| Chipset: | |
| 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| CPU: | |
| 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) | |
| Chipset: | |
| 4 x SATA 6Gb/s connectors | |
| Networking | 1 x 2.5Gb Ethernet |
| WIFI 6E | |
| Bluetooth | |
| Audio | Realtek® CODEC |

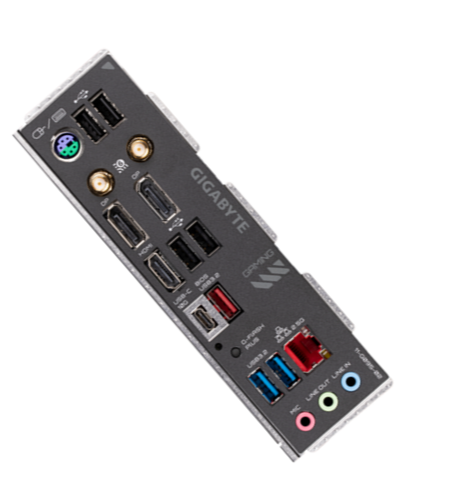

| Connectivity | 4 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 2 x DisplayPorts | |
| 1 x HDMI port | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 1 x USB Type-C® port, with USB 3.2 Gen 2 support | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 2 x USB 3.2 Gen 1 ports | |
| 3 x audio jacks | |
| Internal Ports | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x serial port header | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| https://www.gigabyte.com/Motherboard/B650M-GAMING-X-AX-rev-1x#kf | |
